Image | Series Name | Part Number | Thread/Length for Mounting | Spec.Sheet | Application note | Manual |
---|---|---|---|---|---|---|

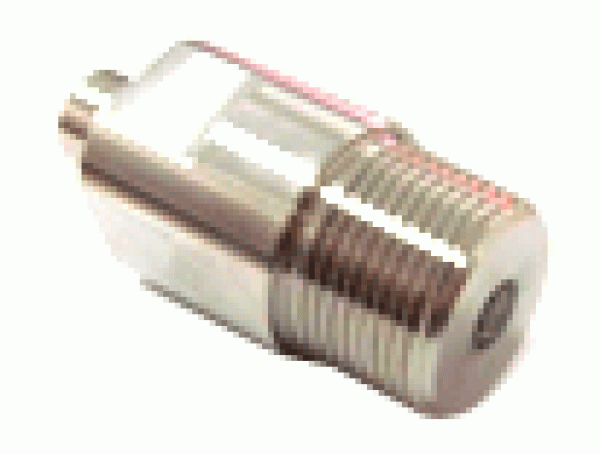

LW10 (Vout) | Detection Range: GUVx1)-T1x2)GC-x3)LW10 | PT3/4 | - | - | - | |
LW10 (Iout) | Detection Range: GUVx1)-T1x2)GC-x3)LW10 | PT3/4 | - | - | - |
Product description
UV wavelength information
-UV-V : 230~395nm (Peak 360nm)
-UV-A : 230~370nm (Peak 360nm)
-UV-B : 220~320nm (Peak 305nm)
-UV-C : 220~280nm (Peak 265nm)
-Visible Blue(VBL) : 300~470nm (Peak 405nm)
-Visible Green(VGR) : 300~510nm (Peak 385nm)
- Features
-
- AlGaInN-based UV Sensor
- Thread : PT 3/4"
- Window : Quartz Glass
- Case Material : SUS 316-L(1.4404)
- Water Resistance : 10 bar
- Cable Length : 5 m (Standard)
- UV Water Treatment
- UV Disinfection Water Treatment
- Applications
-
- UV water sterilization
- UV Water Treatment
- UV lamp/UV LED monitoring
- UV Disinfection Water Treatment
- Specifications
-
- Power Supply
- UV Water Treatment
- Voltage Output : DC 5 V or DC 9~24 V
- Current Output : DC 9~24 V
- Output
- DC voltage : 0 ~ 5 V
- DC current : 4 ~ 20 mA
- Operating Temperature : -30 ~ 85C
- UV Disinfection Water Treatment
