| Image | Series Name | Part Number | Thread/Length for Mounting | Spec.Sheet |
|---|---|---|---|---|
|

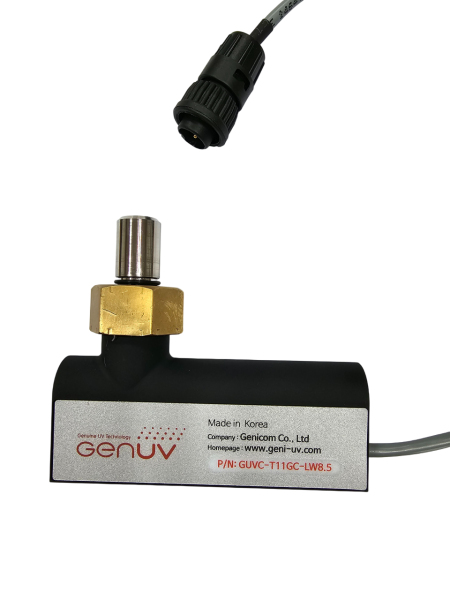

ILW8.5 | GUVx-T1xGC-ILW8.5 | Nut Pitch 18G 5/16" Inner Diameter of Nut : 20mm |
Down |
제품 설명
UV wavelength information
-UV-V : 230~395nm (Peak 360nm)
-UV-A : 230~370nm (Peak 360nm)
-UV-B : 220~320nm (Peak 305nm)
-UV-C : 220~280nm (Peak 265nm)
-Visible Blue(VBL) : 300~470nm (Peak 405nm)
-Visible Green(VGR) : 300~510nm (Peak 385nm)
- Features
-
- AlGaInN-based UV Sensor Probe
- Window : Quarz Glass
- Case Material : stainless steel (316-L)
- Water Resistance : 10 bar- UV Water Treatment
- UV Disinfection Water Treatment
- Applications
-
- Temperature Monitoring
- UV water sterilization
- UV lamp/UV LED monitoring- UV Water Treatment
- UV Disinfection Water Treatment
- Specifications
-
- Power supply
- Voltage Output : DC 9~26 V
- Output
- DC voltage : 0 ~ 5 V
- Operating Temperature : -30 ~ 85C- UV Water Treatment
- UV Disinfection Water Treatment
