| Image | Package Type | Part Number | Chip Size | Spec.Sheet |
|---|---|---|---|---|
|

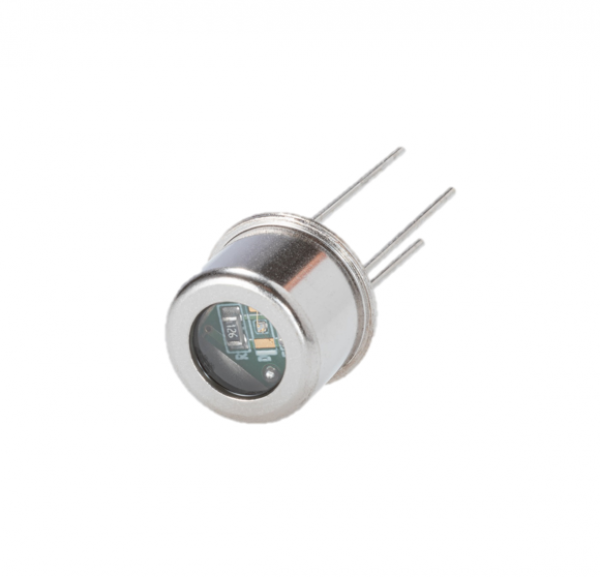

TO 39 PKG | GUVA-T21LD-L(High sensitivity) | 1.4x1.4 mm² |
Down |
|

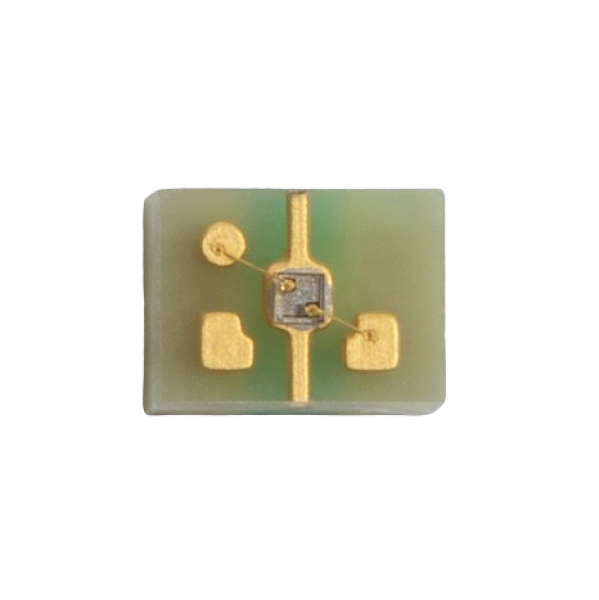

COB 2418 PKG | GUVA-C22SD | 0.4x0.4 mm² |
Down |
|

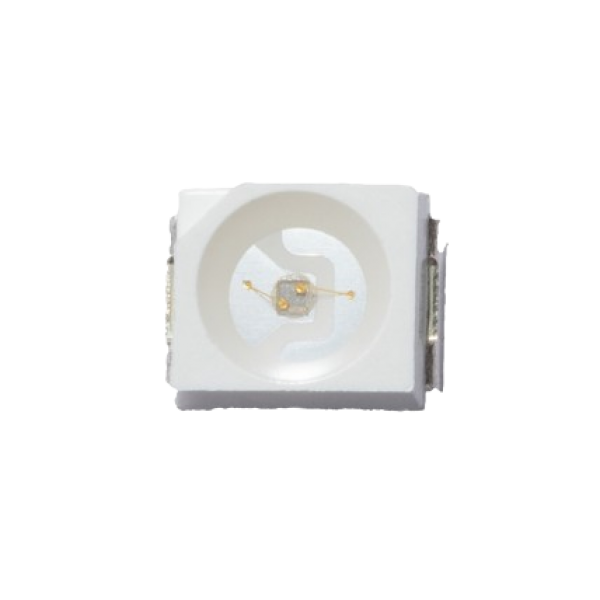

SMD 3528 PKG | GUVA-S12SD | 0.4x0.4 mm² |
Down |
|

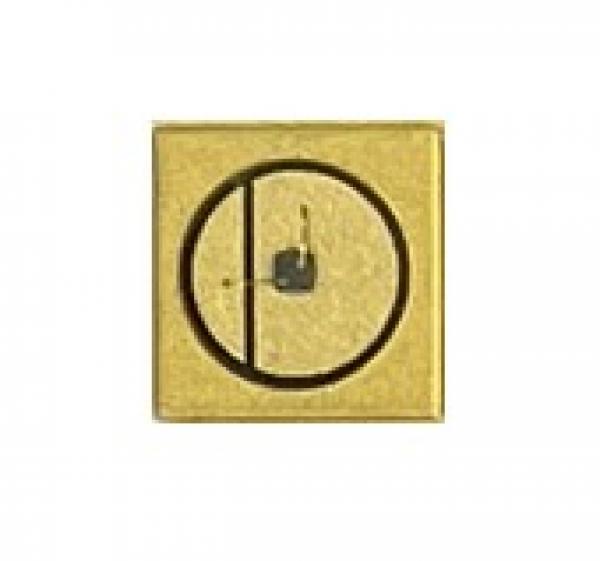

SMD 3535 PKG | GUVA-S12GD-C(Ceramic) | 0.4x0.4 mm² |
Down |
|

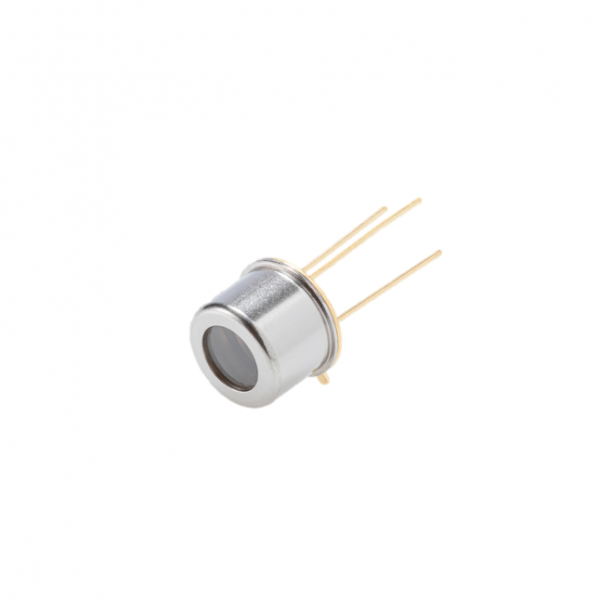

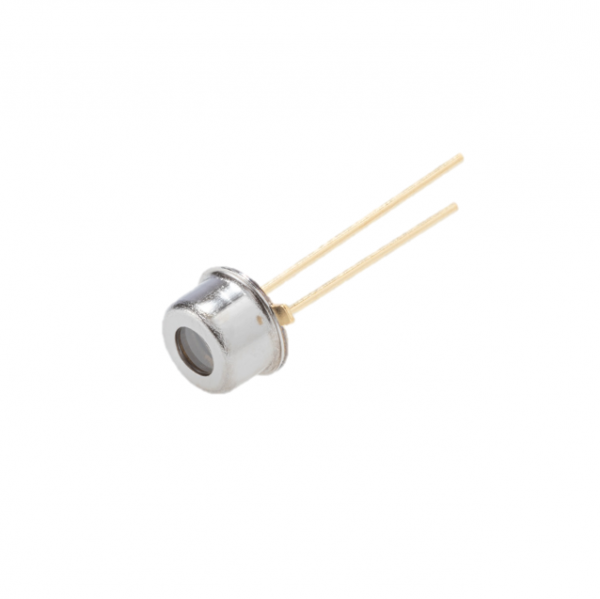

TO 46 PKG | GUVA-T11GD | 0.4x0.4 mm² |
Down |
|
TO 46 PKG | GUVA-T11GD-L | 1.4x1.4 mm² |
Down |
|
TO 39 PKG | GUVA-T21GD-U | 3.4x3.4 mm² |
Down |
|

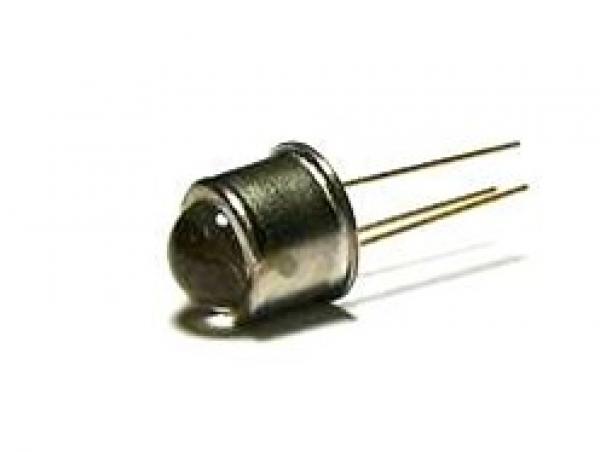

TO 5 PKG | GUVA-T21GH | 0.4x0.4 mm² |
Down |
제품 설명
UVA Sensor : Sensor component to detect UV region(~370nm)
- Features
-
- Gallium Nitride Based Material
- UVA Sensor
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Applications
-
- UV curing
- UVA Sensor
- UV sterilization
- UV spectroscopy
- UV Index monitoring
- UV-A lamp/LED monitoring
