| Image | Application by UV Probe | Part Number | Display | Manual |
|---|---|---|---|---|
|

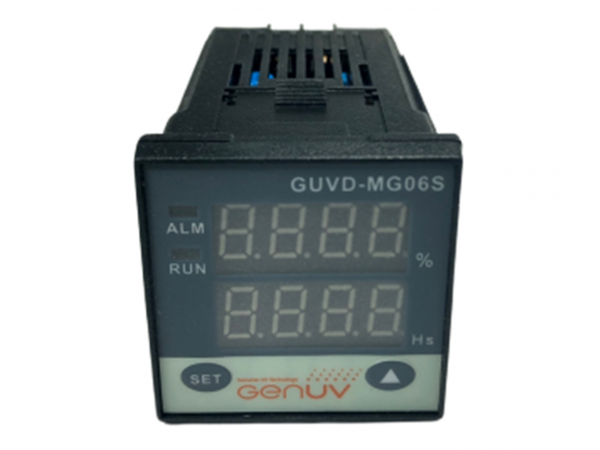

Air/Curing, LA Probe, LW Probe, LO Probe | GUVD-MG06S | Dimensions (mm) 48 x 48 x 107 mm³ |
Down |
Product description
- Features
-
- Fixing method : Panel Insertion
- Power supply : 85 ~ 265 V(50/60Hz)
- Display
- Relative Power(%)
- Accumulative Time (Hours)
- Output
- Relay (NO&COM, 250VAC 3A/30VDC 3A)
- 4-20 mA Current
- Applications
-
- UV Purification (Water, Air)
- UV Curing
- UV Lamp/LED monitoring
- Specifications
-
- Size : 48 x 48 x 107 mm⊃
- Operating Temperature
- Display : 0 ~ 50 C
- UV Sensor Probe : -30 ~ 85 C
- Probe cable length : 5 m (standard)
- Detection Range
- UVV : 230 ~ 395 nm
- UVA : 220 ~ 370 nm
- UVB : 220 ~ 320 nm
- UVC : 220 ~ 280 nm
